Chery Omoda 5 Chassis Strengthening Bars

SUPERCIRCUIT has developed a full set of chassis bars and braces to strengthen the chassis of the Chery Omoda 5 featured below and significantly improve its maneuvering and handling.

Each of the SUPERCIRCUIT chassis bars and braces, namely the FRONT STRUT BAR, FRONT UNDER BAR, FRONT LOWER BRACE, REAR LOWER BAR, REAR UNDER BAR and REAR ANTI-ROLL BAR, has its function and role respectively, to cater for different situations and needs, or installed all for optimum chassis strength and stiffness!

<FRONT STRUT BAR>

The SUPERCIRCUIT Front Strut Bar is designed to strengthen the front upper chassis of the Chry Omoda 5, to maintain the front chassis geometry and minimize chassis flex for a more controlled steering and precise maneuvering.

The SUPERCIRCUIT Front Strut Bar improves and strengthens the front upper chassis of the Chery Omoda 5 for a more agile, responsive and better road surface feedback, and it is finished in our signature MATTE BLACK industrial grade heavy duty coating for a great and professional appearance the engine bay too!

Engineered and manufactured with great details, the brackets of the SUPERCIRCUIT Front Strut Bar are made with laser cut technique and machine bent to shape, for a more robust and stronger structural integrity on the Chery Omoda 5 shown below.

The SUPERCIRCUIT Front Strut Bar made for the Chery Omoda 5 is finished in our signature MATTE BLACK industrial grade heavy duty coating, for a very stylish and elegant look at the engine bay!

While the upper chassis of the Chery Omoda 5 is strengthened by the SUPERCIRCUIT Front Strut Bar shown above, the undercarriage is reinforced and strengthened with the below bars and braces. Each of them is created with its own function and purpose, to meet various kind of road conditions and situations.

<FRONT UNDER BAR>

The SUPERCIRCUIT Front Under Bar shown in the pictures below is created to minimize the front over-hanging of the Chery Omoda 5 from flexing too much, hence a more accurate steering and maneuvering.

The SUPERCIRCUIT Front Under Bar is designed to install atthe forward part of the front sub-frame of the Chery Omoda 5 as shown in the pictures below.

SUPERCIRCUIT Front Under Bar made for the Chery Omoda 5 is finished in our signature MATTE BLACK industrial grade heavy duty coating is simply original at the undercarriage!

<FRONT LOWER BRACE>

The SUPERCIRCUIT Front Lower Brace is designed to strengthen the front lower sub-frame of the Chery Omoda 5 and holds the front wheels' alignment in place for a more accurate and responsive steering.

Often installed with the SUPERCIRCUIT Front Strut Bar to obtain optimum front chassis strength and minimize front chassis flex.

SUPERCIRCUIT Front Lower Brace made for the Chery Omoda 5 is finished in our signature MATTE BLACK industrial grade heavy duty coating is simply original at the undercarriage!

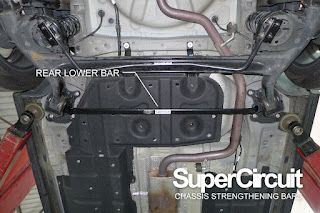

<REAR LOWER BAR>

The SUPERCIRCUIT Rear Lower Bar is designed to strengthen the area where the rear trailing arms are mounted to the Chery Omoda 5's chassis, allowing the rear suspension system to take up more load during cornering without flexing too much of the rear chassis.

The brackets are designed to install and to reinfoce to the areas where the rear trailing arms are mounted to the vehicle chassis as shown in the pictures below, hence a firmer rear-end and lesser rear-end fish-tailing effect when driving out of corners or during dodging obstacles.

Finished in the signature MATTE BLACK industrial grade heavy duty coating, the SUPERCIRCUIT Rear Lower Bar looks simply original and professional at the undercarriage of the Chery Omoda 5.

<REAR UNDER BAR>

While the above SUPERCIRCUIT Rear Lower Bar strengthens the front section of the Chery Omoda 5 rear axle, the SUPERCIRCUIT Rear Under Bar is designed to mount further rearward at the undercarriage as shown in the pictures below, to further strengthen the rear undercarriage for lesser chassis flex and a more controlled maneuvering around corners.

The SUPERCIRCUIT Rear Under Bar is designed to mount at the aft of the Chery Omoda 5 rear axle,

SUPERCIRCUIT Rear Under Bar finished in our signature MATTE BLACK industrial grade heavy duty coating is simply original and professional at the undercarriage of the

<REAR ANTI-ROLL BAR>

The Rear Anti-roll Bar is designed to minimize Chery Omoda 5 body roll during cornering, to maintain level for a more stable and controlled maneuvering.

The SUPERCIRCUIT Rear Anti-roll Bar is designed to install across the rear torsion beam of the Chery Omoda 5 as shown in the pictures below.

The brackets of the SUPERCIRCUIT Rear Anti-roll Bar which are mounted at where the bottom part of the rear springs sit, are laser cut from thick steel materials then machine v-bent to shape. It is structural strong and robust.

SUPERCIRCUIT Rear Anti-roll Bar developed for the Chery Omoda 5 is made with 19mm 'spring steel material' for excellent in maintaining vehicle chassis leveling while cornering and improve chassis recovery time after a sudden maneuvering or obstacle avoidance.

All SUPERCIRCUIT Chassis Bars are engineered and manufactured with top notched technology and craftsmanship, then finished in MATTE BLACK industrial grade heavy duty coating for long lasting performance and stylish professional appearance.
