Subaru BRZ Front Strut Bar with Brake Cylinder Stopper

We have supplied and installed the SUPERCIRCUIT Front Strut Bar with 'Brake Cylinder Stopper' to the SUBARU BRZ shown below, to improve the strength of the front upper chassis and improve the braking performance at the same time!

The SUPERCIRCUIT Front Strut Bar is desinged to mount across the engine bay of the Subaru BRZ, linking the chassis where the front upper suspensions are mounted; replacing the original factory fitted engine bars for a stronger structural integrity and transverse strength.

The SUPERCIRCUIT Front Strut Bar with built-in 'brake cylinder stopper' is simply professional and original at the engine bay of the Subaru BRZ.

The built-in 'brake cylinder stopper' feature brings additional practical function, so the handling and braking is improved at the same time!

Upon hard braking, the sheet metal of the firewall to which the brake master cylinder is attached to, flexes immensely from hydraulic pressure and applied human pedal force resulting in an almost spongy pedal feel. The 'Brake Cylinder Stopper' is designed to stabilize the brake master cylinder and eliminates the spongy pedal feel and improve braking performance.

SUPERCIRCUIT Front Strut Bar with 'brake cylinder stopper' is finished in our signature MATTE BLACK industrial grade heavy duty coating. It is simply stylish & Elegant at the engine bay of the Subaru BRZ!

SUPERCIRCUIT Bars Division has developed a full set of chassis strengtheng bars and braces to improve the handling and maneuvering of the Subaru BRZ/ Toyota 86. They are designed and manufactured with great engineering input to ensure effectiveness and structural integrity, then coated in our signature MATTE BLACK industrial grade heavy duty finishing which are not only durable, they also look stylish and original too!

To purchase or install, please contact us at SUPERCIRCUIT CHASSIS STRENGTHENING BARS DIVISION for more information. Tel: +6 03 5632 2855 or pay us a visit to our showroom at SS13 Subang Jaya Industrial Estate for installation.

Please 'LIKE' and follow us on the SUPERCIRCUIT BARS Facebook Page for more chassis strengthening news and product updates.

Honda CR-V (RW) Rear Anti-roll Bar

The SUPERCIRCUIT Rear Anti-roll Bar is installed to impove the stability of the vehicle and enhance the cornering performance of the 5th generation 2WD Honda CR-V (RW) 1.5 Turbo.

The SUPERCIRCUIT Rear Anti-roll Bar is mounted transversely and interconnects the lower suspension mounts. During cornering, as the outer suspension moves upwards and the inner suspension move downwards, the anti-roll bar comes into action in resisting the body rolling effect!

The function of the SUPERCIRCUIT Anti-roll Bar is designed to replace the 2WD Honda CR-V (RW)'s original rear anti-roll bar for better resistance to vehicle body roll hence better stability and more control during cornering!

OEM grade rubber bushes are utilized on the SUPERCIRCUIT anti-roll bar to optimize durability and long lasting performance!

Pictured below, the SUPERCIRCUIT Rear Anti-roll bar is fully compatible and installed to the original 'end-links' at both sides, so no further modification is required during the installation process. Just plug 'n play.

The SUPERCIRCUIT Rear Anti-roll Bar made for 2WD Honda CR-V (RW) is made with 19mm spring steel material for excellent anti-roll effect and helps to quickly bring the car back to level after exiting corners. Also due to such spring effect, this anti-roll bar is comfortable, not too hard and not bumpy to the rear passengers.

It is finished in our signature MATTE BLACK industrial grade heavy duty coating for a very original and professional appearance at the undercarriage!!

The above anti-roll bar is designed to minimize vehicle body roll and improve the stability of the vehicle during cornering. To further enhance the overall handling of the 5th generation Honda CR-V 2WD (RW), we have come out with a full Honda CR-V (RW) chassis strengthening solutions to cater for various driving situations and road condtions.

All SUPERCIRCUIT Chassis Bars are engineered and manufactured with top notched technology and craftsmanship, then finished in MATTE BLACK industrial grade heavy duty coating for long lasting performance and stylish professional appearance.

Please contact us at SUPERCIRCUIT CHASSIS STRENGTHENING BARS DIVISION for more information about the above chassis strengthening products. Tel: +6 03 5632 2855 or pay us a visit to our showroom at SS13 Subang Jaya Industrial Estate for installation.

Please 'LIKE' and follow us on our SUPERCIRCUIT Facebook Page for more images and updates.

Mazda CX-3 (DK) Mid Chassis Brace

The Chassis Bars Division of SUPERCIRCUIT has developed a complete set of chassis stabilizer bars and braces to strengthen the chassis of the Mazda CX-3 (DK; 2016-2022), which consists of the FRONT STRUT BAR, FRONT LOWER BRACE, MID CHASSIS BRACE, REAR LOWER BAR and REAR UNDER BAR.

Each of the SUPERCIRCUIT Chassis Strengthening Bars and Braces made for the Mazda CX-3 (DK) has its function and role respectively, to cater for various kind of driving situations and road conditions.

Featured below, the SUPERCIRCUIT Mid Chassis Brace designed for the Mazda CX-3 (DK), to strengthen the middle section of the chassis for a even more agile and responsive maneuvering!



The SUPERCIRCUIT Mid Chassis Brace is designed to mount at the middle section of the undercarriage, to further strengthen and reinforce the middle section of the chassis for a more balanced weight transfer during turning, cornering and braking.

All SUPERCIRCUIT Chassis Bars are engineered and manufactured with top notched technology and craftsmanship, then finished in MATTE BLACK industrial grade heavy duty coating for long lasting performance and stylish professional appearance.

Please contact us at SUPERCIRCUIT CHASSIS BARS DIVISION for more information about the SUPERCIRCUIT chassis strengthening solutions for your car. Tel: +6 03 5632 2855 or pay us a visit to our showroom at SS13 Subang Jaya Industrial Estate for installation.

Please 'LIKE' and follow us on the SUPERCIRCUIT Facebook Page for more images and product updates.

Proton X50 Chassis Strengthening

We have just strengthened yet another Proton X50's chassis with our premium chassis strengthening bars and braces, to improve the handling and maneuvering of the vehicle.

All the SUPERCIRCUIT Chassis Strengthening Bars & Braces shown below are designed and developed to strengthen the body of the Proton X50 to improve the handling and maneuvering under various kind of driving conditions and situations.

<FRONT STRUT BAR>

The SUPERCIRCUIT front strut bar is designed to mount across the front upper chassis as shown in the pictures below, to reinforce the area where the upper front suspensions are mounted to the chassis, to strengthen the Proton X50's front upper chassis and to minimize front chassis flex, hence a more responsive streering and accurate maneuvering of the vehicle.



The SUPERCIRCUIT Front Strut Bar is designed to conceal under the Proton X50's front windscreen plastic cover, for a neat and tidy engine bay.

SUPERCIRCUIT Front Strut Bar, which is finished in our signature MATTE BLACK industrial grade heavy duty coating, is so original and professional at the Proton X50's engine bay.

<FRONT UNDER BAR>

The SUPERCIRCUIT Front Under Bar is designed to install and strengthen the forward part of the front sub-frame of the Proton X50 as shown in the pictures below, to minimize the front over-hanging from flexing too much, hence a more predictable and stabled front chassis.

SUPERCIRCUIT Front Under Bar made for the Proton X50 in our signature MATTE BLACK industrial grade heavy duty coating is simply original at the undercarriage!

<FRONT LOWER BRACE>

The SUPERCIRCUIT Front Lower Brace is designed to strengthen the front lower sub-frame and hold the front wheels alignment in place for a more accurate and responsive steering.

Often installed with the SUPERCIRCUIT Front Strut Bar to obtain optimum front chassis strength and minimize front chassis flex.

SUPERCIRCUIT Front Lower Brace made for the Proton X50 in our signature MATTE BLACK industrial grade heavy duty coating is simply original at the undercarriage!

<MID CHASSIS BRACE>

The SUPERCIRCUIT Mid Chassis Brace is developed to strengthen the middle part of the Proton X50's chassis, for a more agile and responsive chassis especially with multiple maneuvering or obstacle avoidance.

<REAR LOWER BAR>

The SUPERCIRCUIT Rear Lower Bar is designed to strengthen the area where the rear axle of the Proton X50 is mounted to the chassis, allowing the rear chassis to withstand more loads during cornering without flexing too much. Hence a firmer rear-end and lesser rear-end fish-tailing effect when driving out of corners or during dodging obstacles.

SUPERCIRCUIT Rear Lower Bar made for the Proton X50 in our signature MATTE BLACK industrial grade heavy duty coating is simply original at the undercarriage!

<REAR ANTI-ROLL BAR>

The Rear Anti-roll Bar is designed to minimize vehicle body roll during cornering, to maintain level for a more stable and controlled maneuvering.

The SUPERCIRCUIT Rear Anti-roll Bar is designed to install across the rear torsion beam as shown in the pictures below.

SUPERCIRCUIT Rear Anti-roll Bar developed for the Proton X50 is made of 19mm 'spring steel material' for excellent in maintaining vehicle chassis leveling during cornering and improve chassis recovery time after a sudden maneuvering or obstacle avoidance.

Please contact us at SUPERCIRCUIT CHASSIS STRENGTHENING BARS DIVISION for more information about the above chassis strengthening products developed for the Proton X50. Tel: +6 03 5632 2855 or pay us a visit to our showroom at SS13 Subang Jaya Industrial Estate for installation.

Please 'LIKE' and follow us on our SUPERCIRCUIT Facebook Page for more images and updates.

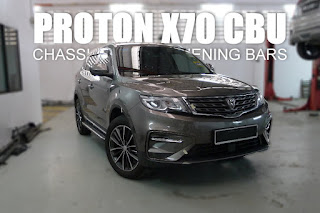

Proton X70 CBU Chassis Strengthening Bars & Braces

Here at the SUPERCIRCUIT's installation bays, we have just strengthened yet another Proton X70 with our signature MATTE BLACK chassis strengthening bars and braces, to improve the handling and maneuvering of the SUV below.

<FRONT STRUT BAR>

The SUPERCIRCUIT Front Strut Bar, which is designed to strengthen the area where the two front suspension top are mounted to the front chassis of the Proton X70 (CBU), to strengthen the front upper chassis and to minimize front chassis flex.

While the SUPERCIRCUIT Front Strut Bar above strengthens the front upper chassis and hold the upper part of the front suspensions, the SUPERCIRCUIT Front Under Brace and Front Lower Brace shown in the picture below reinforces the front lower chassis of the Proton X70 (CBU), for lesser front chassis flex and hold the front wheels' alignment in geometry for a sharper steering and accurate maneuvering.

<FRONT UNDER BRACE>

The SUPERCIRCUIT Front Under Brace is designed to mount at the over hang of the Proton X70 (CBU) chassis, under the engine to be exact, to minimize the flex of the very front part of the chassis, which is subject not only to the weight of the engine, also from the road surface while travelling on uneven surfaces.

<FRONT LOWER BRACE>

The SUPERCIRCUIT Front Lower Brace shown in the pictures below is located at the rear of the front sub-frame, further reinforcing the front lower part of the Proton X70 (CBU) chassis as well as the front sub-frame which is carrying the load from the front suspensions, to further minimize the front lower chassis flex and hold the front wheels alignment better for accurate steering!

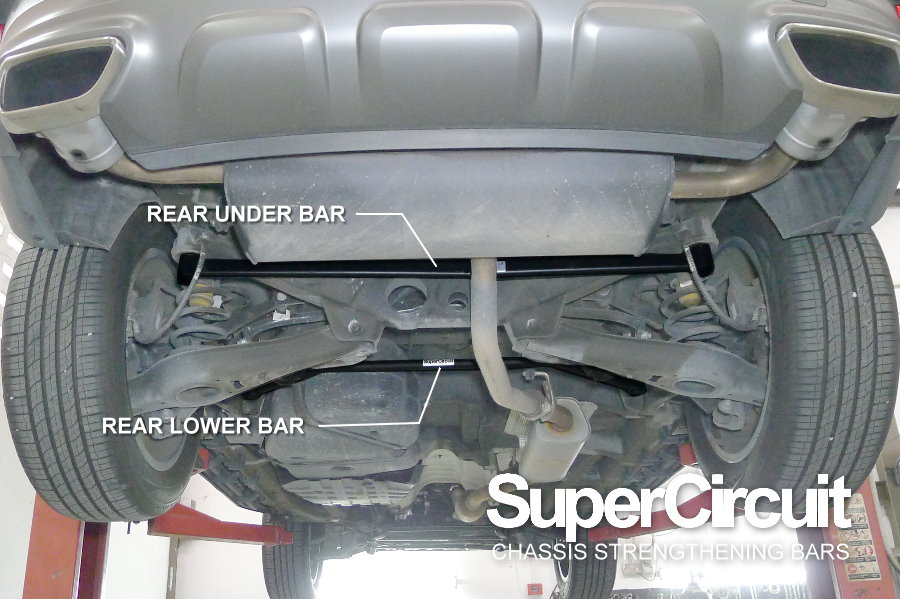

The rear lower chassis of the Proton X70 (CBU) is strengthened for a more stabled and controlled cornering, therefore the SUPERCIRCUIT Rear Lower Bar and Rear Under Bar comes into the picture.

Both the Rear Lower Bar and Rear Under Bar shown above are designed to strengthen the rear lower chassis of the Proton X70 (CBU) to minimize the rear-end swaying or fish tailing effect especially exiting high speed corners, overtaking or sudden maneuvering when the rear end tends to swing out due to inertia forces.

<REAR LOWER BAR>

The SUPERCIRCUIT Rear Lower Bar is designed to strengthen the forward section of the rear sub-frame, allowing the rear suspension system to take up more load during cornering without flexing too much of the rear chassis. Hence a firmer rear-end and lesser rear-end fish-tailing effect when driving out of corners or during dodging obstacles.

<REAR UNDER BAR>

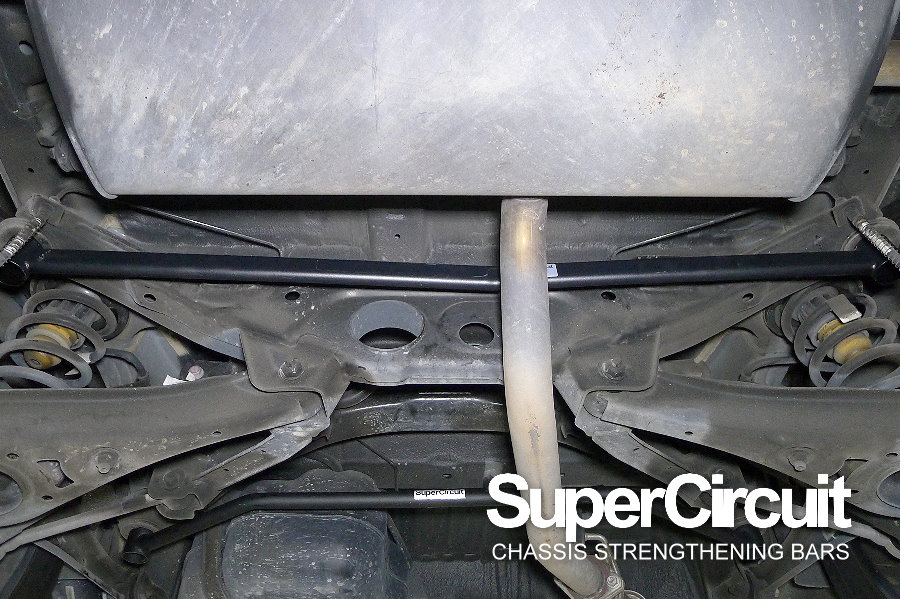

The SUPERCIRCUIT Rear Under Bar is designed to strengthen the rear section of the Proton X70 (CBU)'s rear sub-frame, but since it is located further rearward, we called it the 'Rear Under Bar'.

Please contact us at SUPERCIRCUIT CHASSIS STRENGTHENING BARS DIVISION for more information. Tel: +6 03 5632 2855 or pay us a visit to our showroom at SS13 Subang Jaya Industrial Estate for installation.

Please 'LIKE' and follow our SUPERCIRCUIT BARS Facebook Page for more images and product updates.

Toyota Voxy (R80) Chassis Strengthening Solutions

Here is yet another Toyota Voxy (R80) installed the complete set of SUPERCIRCUIT Chassis Strengthening Bars and Braces, which consists of the Front Strut Bar, Front Lower Brace, Rear Lower Bar and Rear Under Bar, to improve and enhance the handling and maneuvering of the vehicle.

Each of the bars and braces are designed with their own purpose and function, to cater for various kind of road conditions and driving situations!

<FRONT STRUT BAR>

The SUPERCIRCUIT front strut bar is designed to reinforce at the area where the top of the front absorber struts are mounted to the front chassis of the Toyota Voxy (R80), to strengthen the front upper chassis and to minimize front chassis flex.

Since the front abosorber top mounts are not visible from the engine bay, to install the SUPERCIRCUIT front strut bar to the vehicle, the wipers and the plastic covers at the windscreen has to be removed as shown in the picture below.

The SUPERCIRCUIT Front Strut Bar developed for the Toyota Voxy (R80) is finished in our signature MATTE BLACK industrial grade heavy duty coating, which is simply stylish and elegant at the engine bay!

<FRONT LOWER BRACE>

While the SUPERCIRCUIT Front Strut Bar strengthens the front upper chassis and hold the upper part of the front suspensions, the undercarriage of the Toyota Voxy is strengthened with the 3-point SUPERCIRCUIT Front Lower Brace shown below, for lesser front chassis flex and hold the front wheels alignment in geometry for a sharper steering and accurate maneuvering.

Designed to mount with the original bolts and finished in our signature MATTE BLACK industrial grade heavy duty coating, the SUPERCIRCUIT Front Lower Brace is simply original and effective at the undercarriage of the Toyota Voxy (R80).

At the rear undercarriage of the Toyota Voxy (R80), the SUPERCIRCUIT Rear Lower Bar and Rear Under Bar shown in the picture below strengthenED the rear lower chassis and to minimize the rear-end swaying or fish tailing effect especially exiting high speed corners, overtaking or sudden maneuvering when the rear end tends to swing out due to inertia forces.

<REAR LOWER BAR>

The SUPERCIRCUIT Rear Lower Bar is designed to mount across the rear lower chassis of the Toyota Voxy (R80) as shown in the pictures below, to strengthen and minimize rear chassis flex for a more controlled cornering.

The SUPERCIRCUIT Rear Lower Bar is finished in our signature MATTE BLACK industrial grader heavy duty coating for a very professional and original appearance at the rear undercarriage of the Toyota Voxy (R80).

<REAR UNDER BAR>

The 4-point SUPERCIRCUIT Rear Under Bar is designed to install at the aft side of the Toyota Voxy (R80) rear sub-frame, so both the fore and aft of the sub-frame are reinforced and strengthened by the SUPERCIRCUIT Rear Lower Bar and Rear Under Brace respectively, for a more controlled and stabled maneuvering around the corners.

The 4-point SUPERCIRCUIT Rear Under Bar is finished in our signature MATTE BLACK industrial grade heavy duty coating. It is simply original and professional at the undercarriage of the Toyota Voxy (R80)!

All SUPERCIRCUIT Chassis Strengthening products are designed and manufactured with great details and engineering input to ensure effectiveness and structural integrity.

For further information or to install, please contact us at SUPERCIRCUIT CHASSIS STRENGTHENING BARS DIVISION Tel: +6 03 5632 2855 or pay us a visit to our showroom at SS13 Subang Jaya Industrial Estate for other SUPERCIRCUIT Chassis Bars products on display.

Please 'LIKE' and follow our SUPERCIRCUIT Facebook Page for more information and product updates.
